Ælement Fusion ANSI

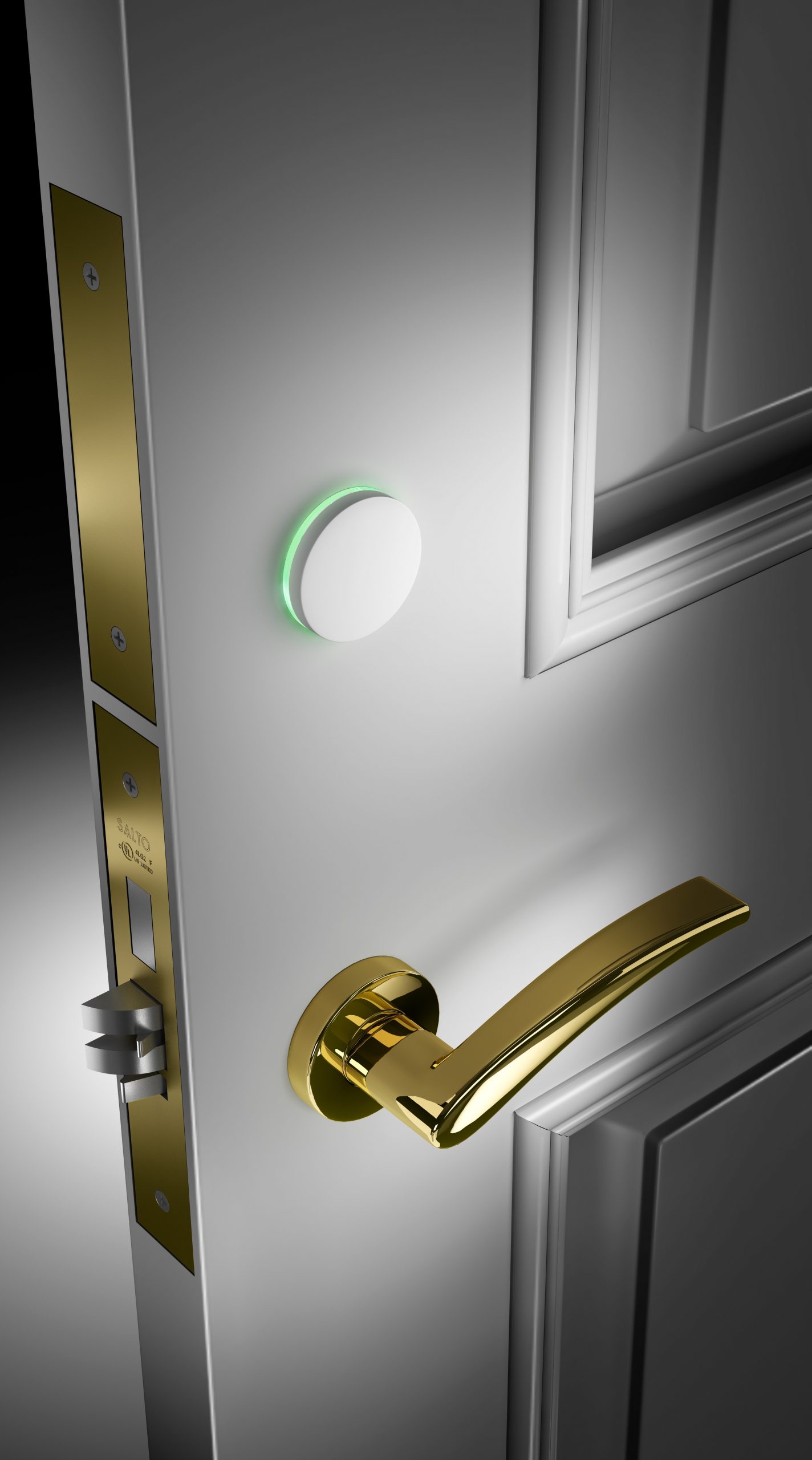

Ælement Fusion is an electronic lock with a sleek reader accentuated by an interactive light ring that illuminates when access credentials are presented, providing a minimalistic design that blends with any hotel décor.

Get in Touch with us to purchase

Scroll down for more information ▼

MAIN FEATURES

  • Electronic circuit board and battery pack. Lock hardware and all electronic components inside the door
  • Sleek round reader with an interactive LED light ring
  • Mechanical privacy function option through thumb turn on the inside (for hotel industry).
  • The lock can always be opened from the inside (single action panic feature works in conjunction with the relevant mortise lock).
  • Different reader finish & handle designs available.
  • Available with mechanical cylinder cut outs for key override or access lock outs (override Mortise profile cylinder) with audit trail facility available (optional).
  • For new construction wood and metal doors.

TECHNICAL CHARACTERISTICS:

  • Covers door thicknesses: From 45mm up to 125mm.
  • Reader dimensions (H x W x D): 45,0 x 45,0 x 8,0 mm.
  • Faceplate dimensions (H x W): 152,0 x 31,5 mm – 152,0 x 27,0 mm
  • Handle rotation: 52º.
  • Handle block mechanism lock.
  • Square spindles: 8mm split (SALTO spindle srequired).
  • Compatible with ANSI A 156.13 standard mortise locks.
  • Automatic deadbolt model is available.

PLATFORMS

  • SALTO Space
    • SVN Data-on-card
    • Wireless (SALTO BLUEnet)
    • SVN-FLEX
  • SALTO KS
    • Wireless (SALTO BLUEnet)

ID TECHNOLOGIES

  • MIFARE® (DESFire EV1, Plus, Ultralight C, Classic – ISO/IEC 14443)
  • Bluetooth SMART (BLE)
  • NFC.
  • HID iClass®
  • Hilton digital key

CERTIFICATIONS



READER COLOUR



FACEPLATE FINISHES
