Wall Readers

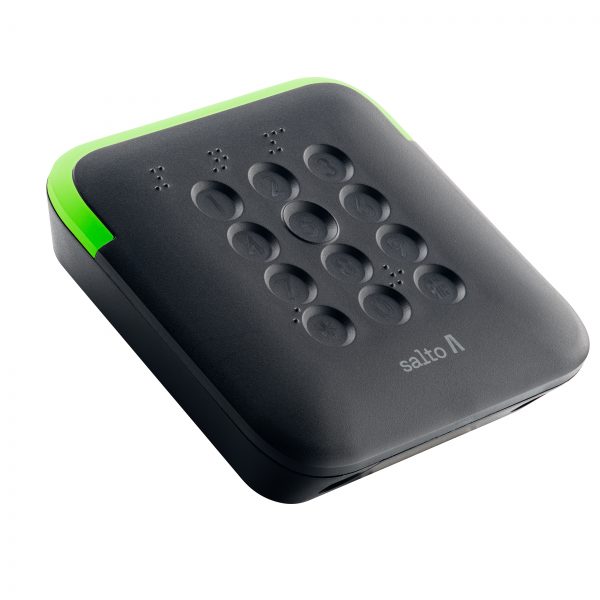

Design XS – European Keypad Wall Reader

Modern aesthetic design with green/red and blue clear LED colour optical signal.
Conical or flat square shape with rounded corners.
Easy to flush or surface-mount, and installs compatible with standard European electric boxes and standard electrical wiring.
Numbers and symbols are embossed with braille and 5-point reference on the reader for visually impaired users.
Multi-factor authentication and additional opening mode options, including PIN code access, provide an extra layer of security via two-factor authentication.
Standardized RFID credentials, including Bluetooth, NFC, and Virtual network capable, through Salto Virtual Network (SVN) data-on-card technology.
Acoustic and optical signaling, dual color green/red to indicate access authorisation.
Blue light indicates that the user key update is in progress through SVN technology.
Specially designed to fit European standard electric boxes, making the installation quick and easy.
Reader is housed in a two-piece, weatherproof secure electronics potted enclosure.
Available for surface mounting.
Concealed fixing screws for greater security and improved aesthetics.

Mobile and physical credential technologies compatible, including Bluetooth LE, NFC and RFID.
To be used in combination with controllers (CU42xxx) or BLUEnet Door Controller (CUCxxx).
Connection to the door controller: 4 wires.
Simplify network infrastructure with the latest advancements in BLUEnet wireless technology capabilities and connectivity for cloud access control and mobile applications.
Reading distance from 35 to 50mm depending on the RFID technology.Reading distance from 35 to 50mm depending on the RFID technology.
Maximum distance the door controller and the wall reader 400m1 using a twisted pair cable.
Robust design to withstand the harshest of conditions, making it an ideal choice for environmentally exposed locations.
Includes tamper to monitor if the wall reader has been opened.
