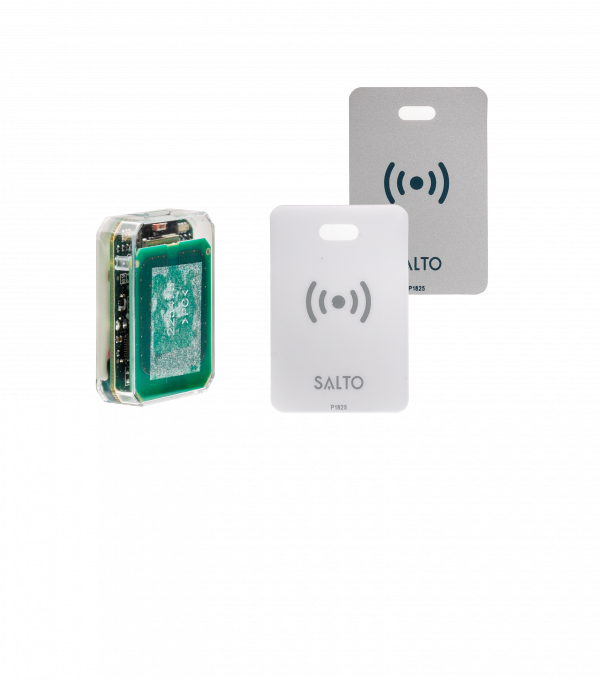

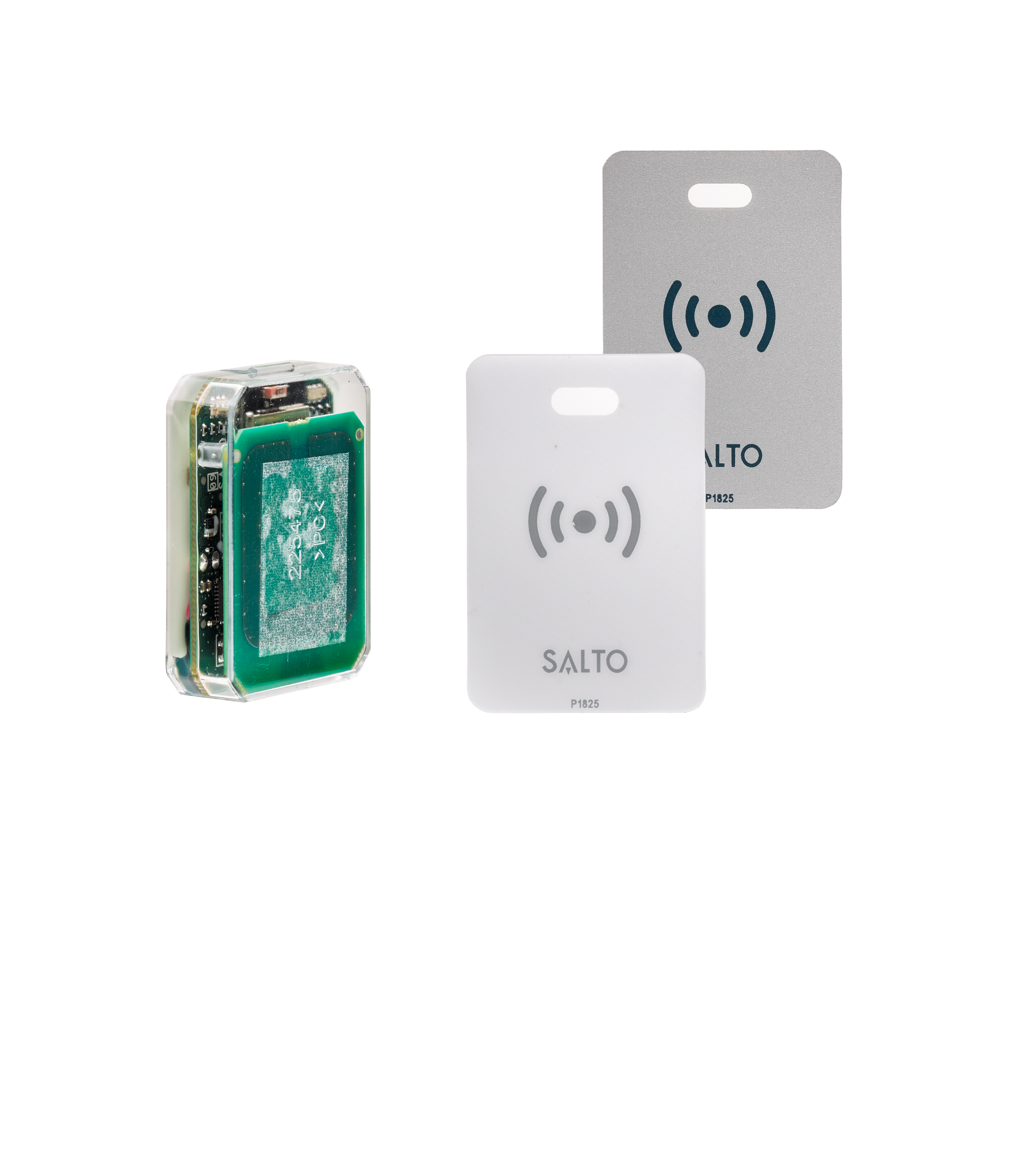

Design XS – Panel Reader
The Panel XS reader is a door entry system that works in conjunction with SALTO controllers. Designed to be integrated behind lift panels, door intercoms, electric switches or turnstiles & gates. These models need a window, which is necessary for reader antenna operation.
Scroll down for more information ▼
MAIN FEATURES
- Compact reader module reader.
- Specially designed to be integrated behind lifts panels, door intercoms, electric switches,….
- Two stickers & labels are available for visible signage.
- Reader is housed in a one piece, weatherproof secure electronics potted enclosure.
- Fully integrated with the SALTO XS4 platform.
- Virtual network capable through SALTO SVN data-on-card technology.
- Acoustic and optical signalling, dual colour green/red to indicate access authorisation.
- Blue light indicates that the user key update is in progress through SALTO Virtual Network technology.
TECHNICAL CHARACTERISTICS:
- To be used in combination with XS4 2.0 controllers (CU42xxx).
- Maximum distance the door controller and the wall reader 400m using a twisted pair cable.
- Connection to the door controller: 4 wires.
- Designed to work with an online SVN access control platform, or with a stand-alone system.
- Includes tamper to monitor if the wall reader has been opened.
- Reading distance from 35 to 50mm depending on the RFID technology.
OPENING MODES:
- Opening through key card or smartphone.
PLATFORMS
- SALTO Space
- SVN Data-on-card
- Wireless (SALTO BLUEnet)
- SALTO KS
- Wireless (SALTO BLUEnet)
ID TECHNOLOGIES
- MIFARE® (DESFire EV1, Plus, Ultralight C, Classic – ISO/IEC 14443)
- Bluetooth SMART (BLE)
- NFC.
CERTIFICATIONS
