Gateway03

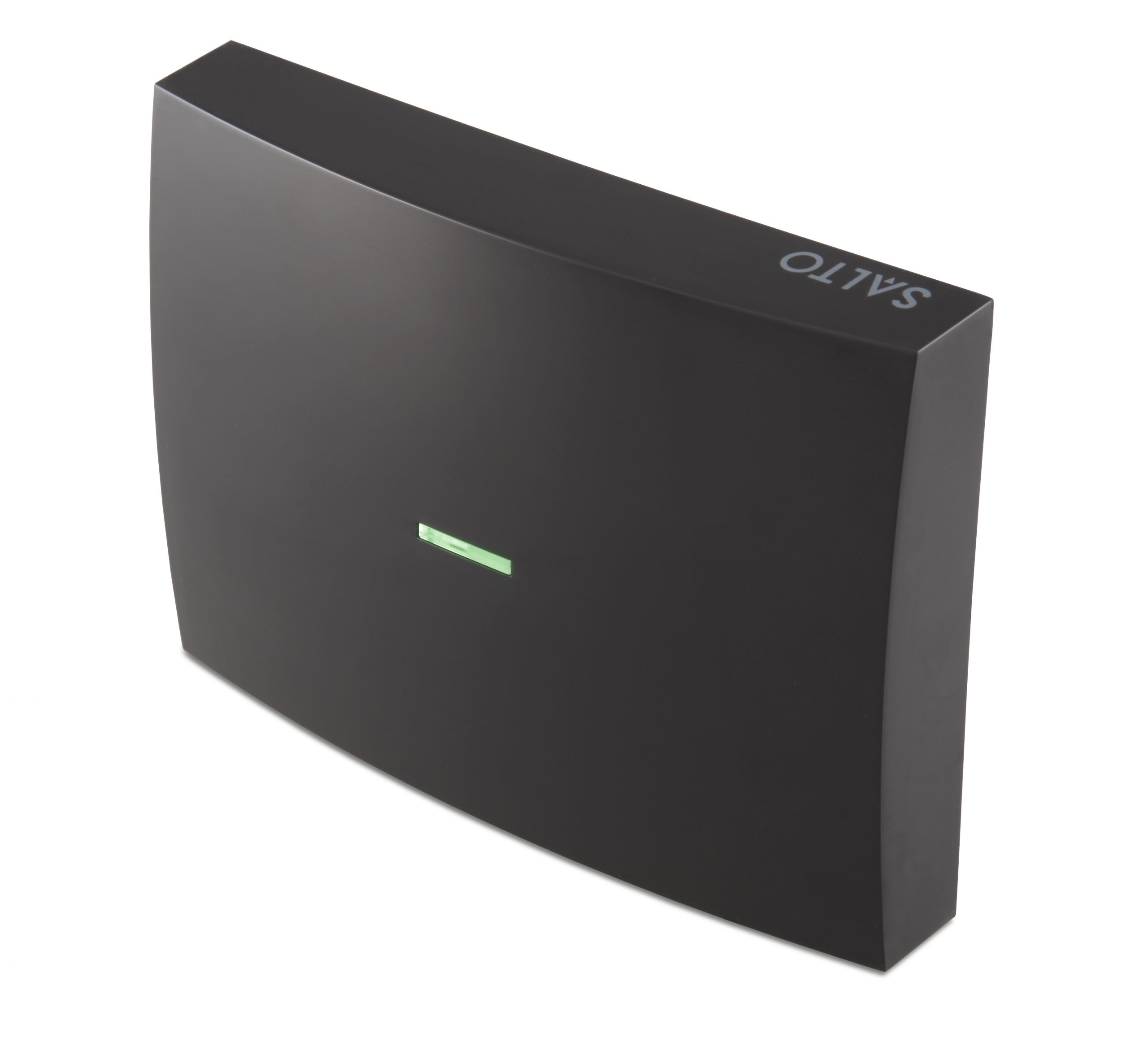

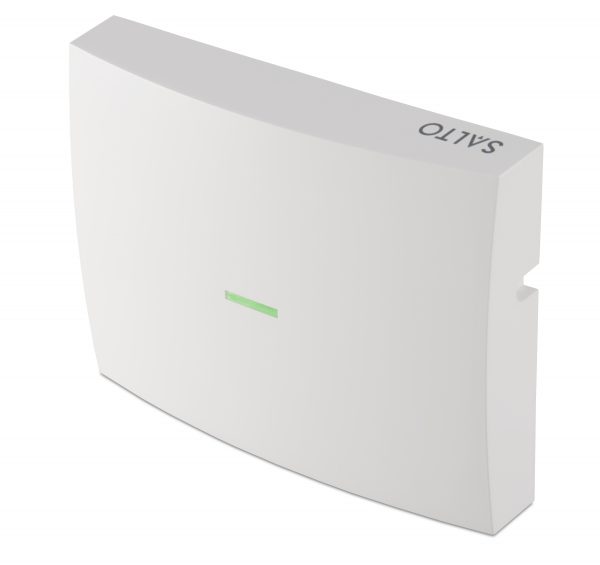

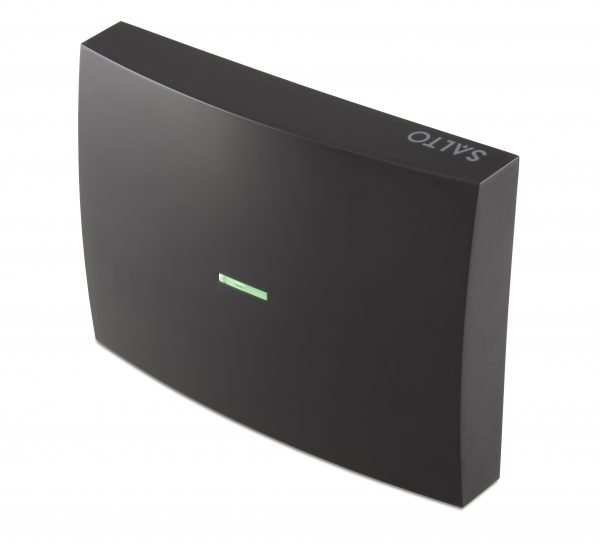

The SALTO Gateway is the link the PC and the wireless network. Completely managed through SALTO ProAccess SPACE software, it collects all the information sent by the escutcheons or the electronic cylinders through the nodes by using the Bluetooth smart technology.
Scroll down for more information ▼
MAIN FEATURES
- Compatible with SALTO BLUEnet wireless network
- Wireless radio frequency based on Bluetooth Low Energy.
- AES 128bits encryption.
- Connection to the LAN Network 10 BASE-T/100 BASE-TX.
- PoE supported IEEE802.3af (12V power adapter optional).
- Can manage several nodes and many locks.
- One gateway can manage up to 7 nodes (1 internal + 6 external nodes).
- External nodes compatible through BUS485: RFNODE (RFnet) and RFNODE3 (SALTO BLUEnet).
- IP addressing through web explorer available.
- Firmware update via software through Ethernet connection.
- One internal node included (SALTO BLUEnet node).
- LED lamps: Multi colour led to notify the status of the device.
- Tamper switch: Built in tamper microswitch to notify if the Gateway has been opened.
- DHCP by default: Recommended.
TECHNICAL CHARACTERISTICS:
- Operation conditions
- Temperature: Min 0º – Max 60º
- Humidity: Min 35% – Max 85%
- Cable requirements:
- Ethernet: UTP CAT5e
- Node Connection (AB): Generic twisted pair wire
- Node Connection (Vdd): 24 AWG
- SALTO BLUEnet Characteristics (if internal node installed):
- Frequency Range: 2400-2483 Mhz
- RF Standard: Bluetooth Low Energy
- Indoor Radio Range: 5m/10m
- Max output power: 8dBm
- PoE (IEEE 802.3af):
- Class: 2
- MaxPower: 5W
- Ethernet standard: 10BASE-T/100BASE- TX.
- Auxiliary Power Supply:
- Input voltage: 10V (Min.) – 15V (max)
- Current consumption: 75mA (Min.) – 500mA (max)
- Includes tamper to monitor if the cover has been opened.
PLATFORMS
- SALTO Virtual Network (SVN) data-on-card
- SALTO ProAccess SPACE software compatible
