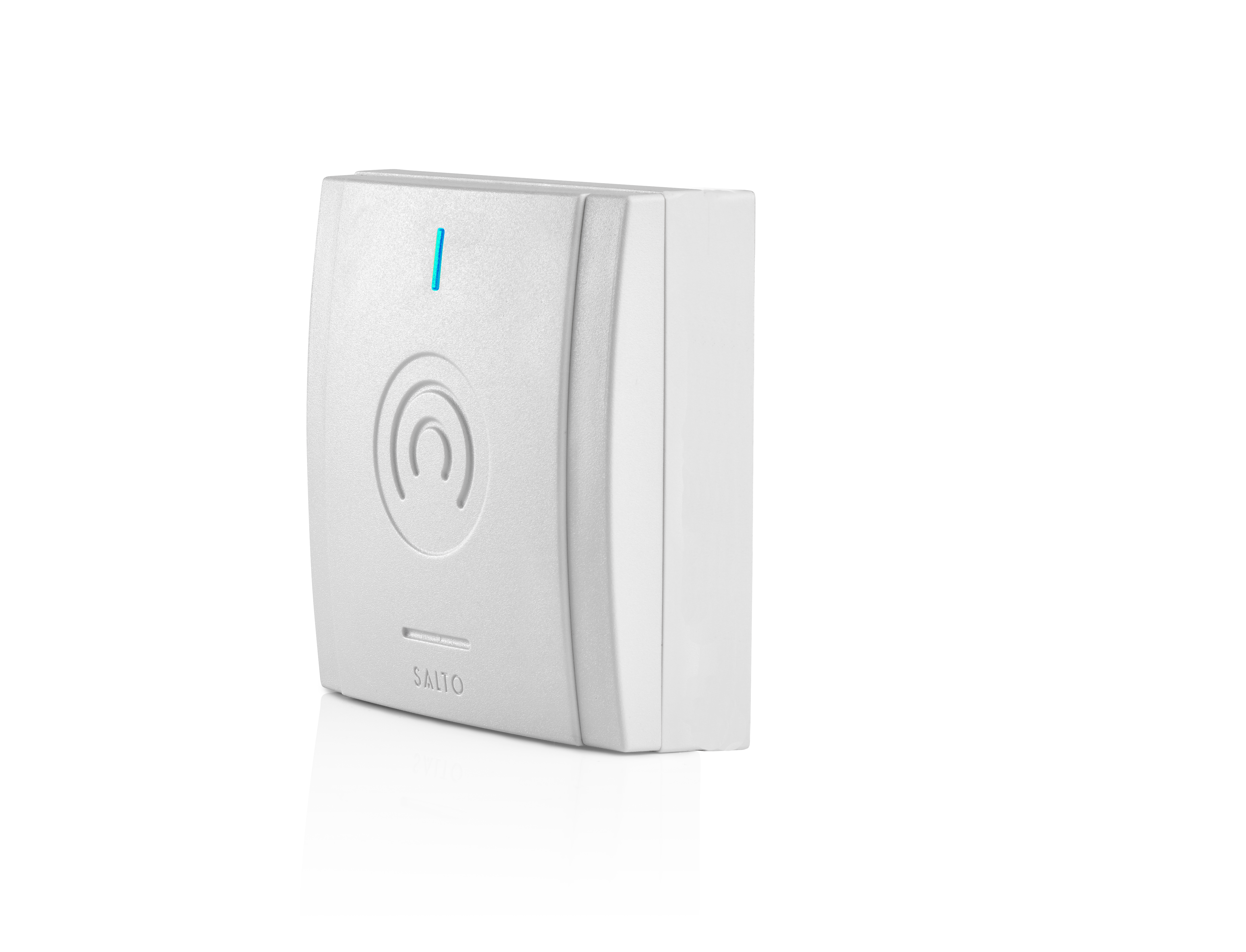

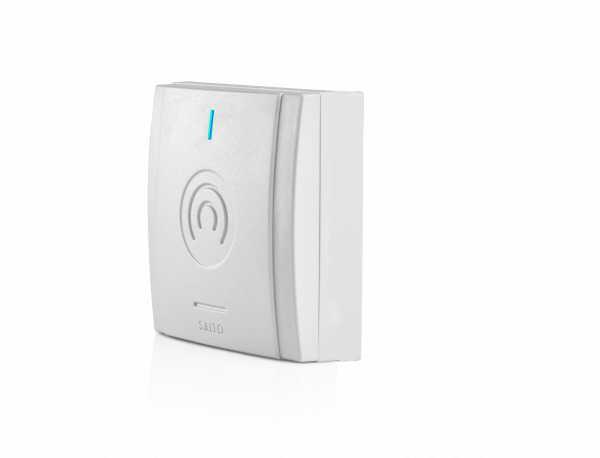

Repeater03

The SALTO wireless REPEATER03 is a bridge the gateway and the BLUEnet escutcheons or BLUEnet cylinders. It permits to expand the quantity of networked devices and to increase the number of BLUEnet access points.

Based on SALTO BLUEnet wireless communication, the SALTO BLUEnet Repeater does not need to be wired.

Get in Touch with us to purchase

Scroll down for more information ▼

MAIN FEATURES

  • Compatible with SALTO BLUEnet wireless network.
  • Wireless radio frequency based on Bluetooth Low Energy.
  • AES 128bits encryption.
  • Connection to the GATEWAY03 by SALTO BLUEnet wireless connection.
  • Powered by 12V power supply adaptor.
  • Can manage up to 16 wireless locks.
  • Can manage up to 6 additional repeater.
  • Firmware update via software through Ethernet connection.

TECHNICAL CHARACTERISTICS:

  • Operation conditions
    • Temperature: Min -20º – Max 70º (without condensation)
    • Humidity: Min 35% – Max 85%
  • SALTO BLUEnet characteristics:
    • Frequency Range: 2400-2483,5 Mhz
    • RF Standard: Bluetooth Low Energy
    • Indoor Radio Range: 5m/10m
    • Max output power: 8dBm
  • Auxiliary Power Supply:
    • Input voltage: 7V (Min.) – 28V (max)
    • Current consumption: 75mA

PLATFORMS

  • SALTO Virtual Network (SVN) data-on-card
    • SALTO ProAccess SPACE software compatible
  • SALTO KS (Cloud-based locking solution)

CERTIFICATIONS



COLOUR

Downloads

Datasheet
