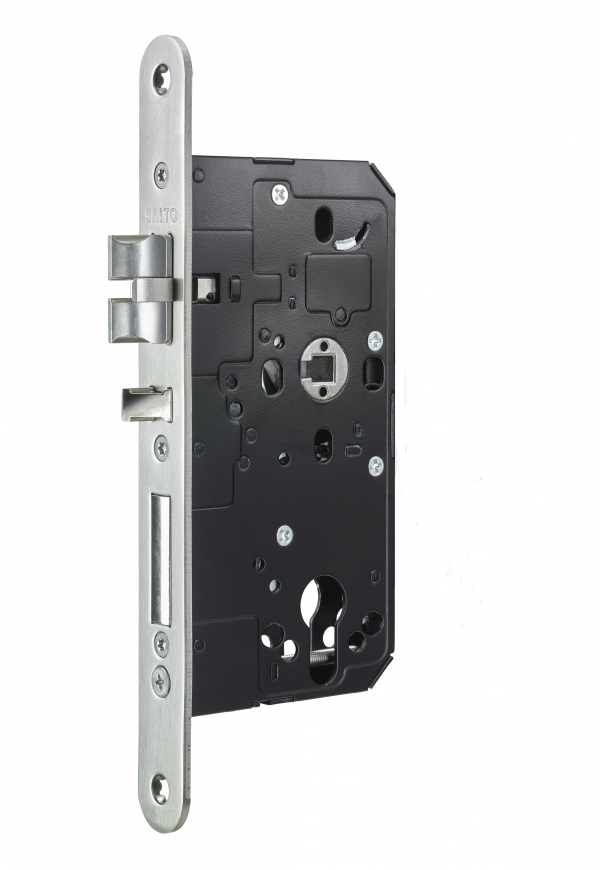

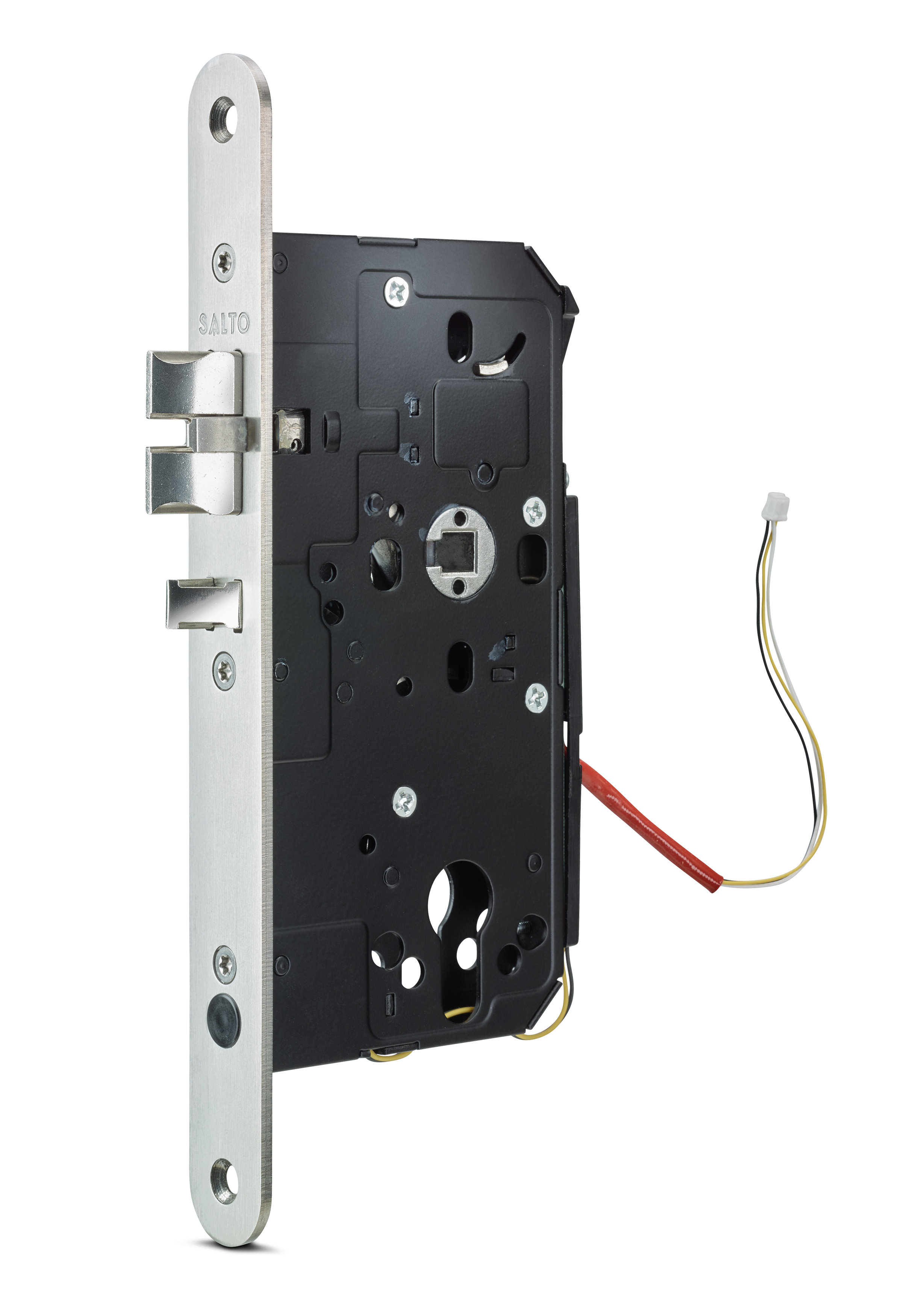

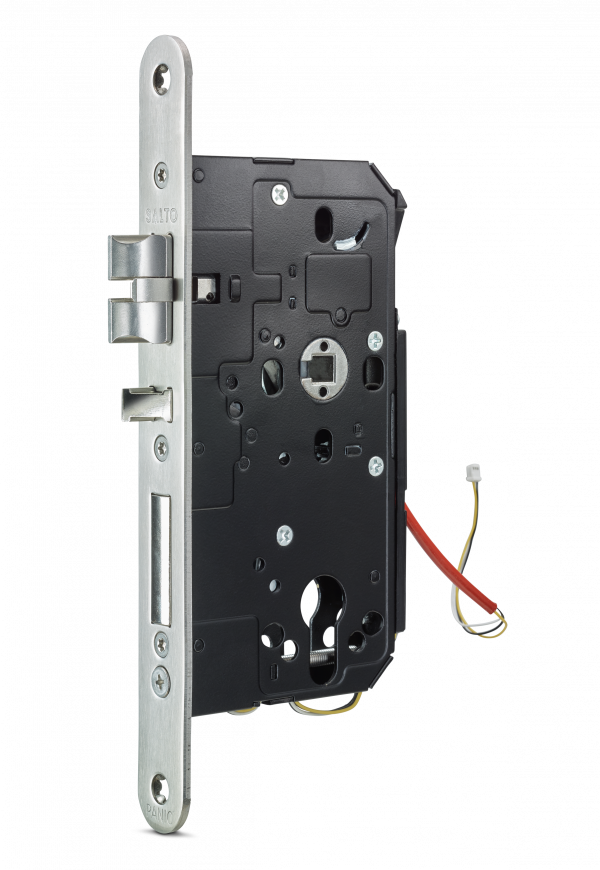

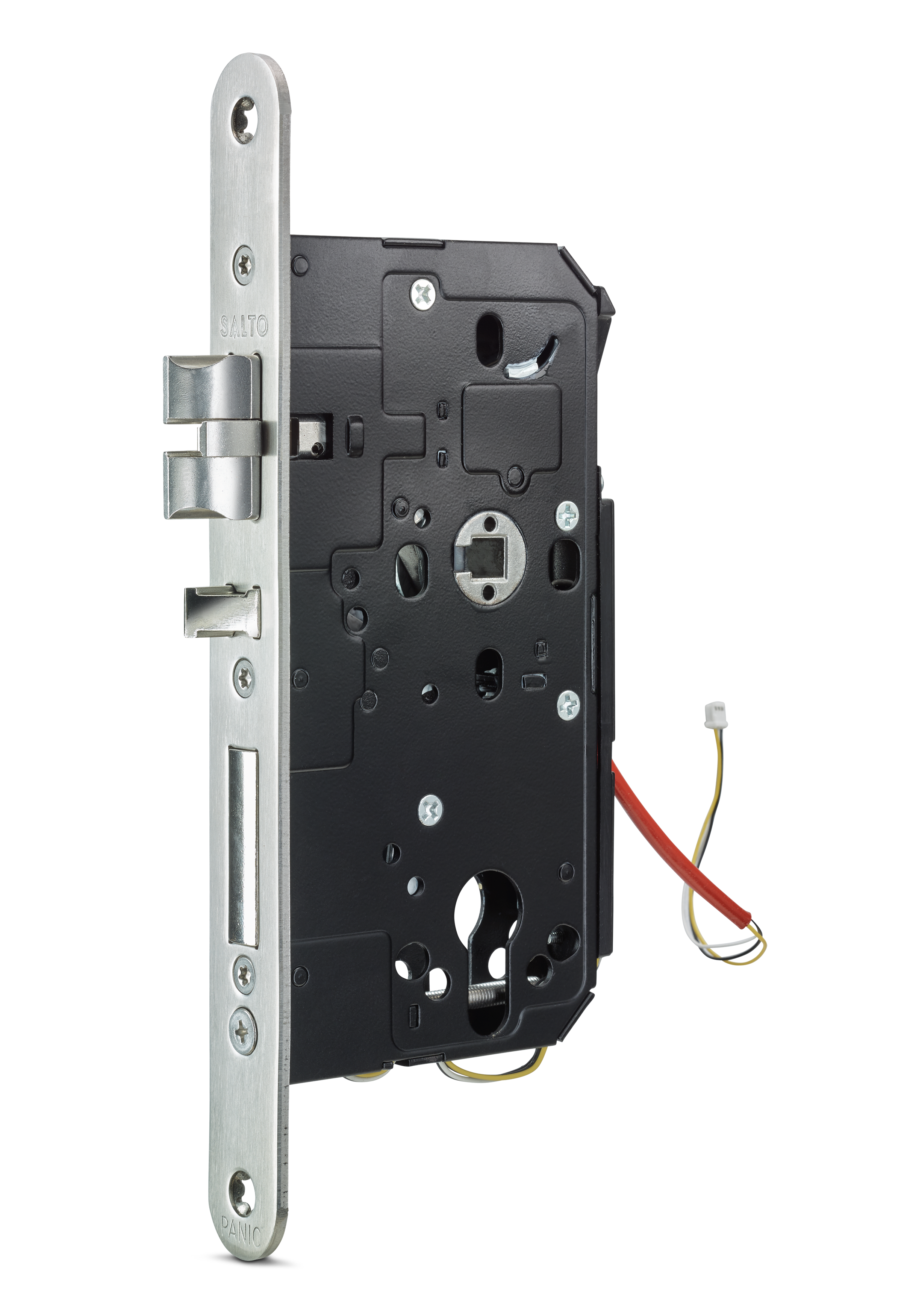

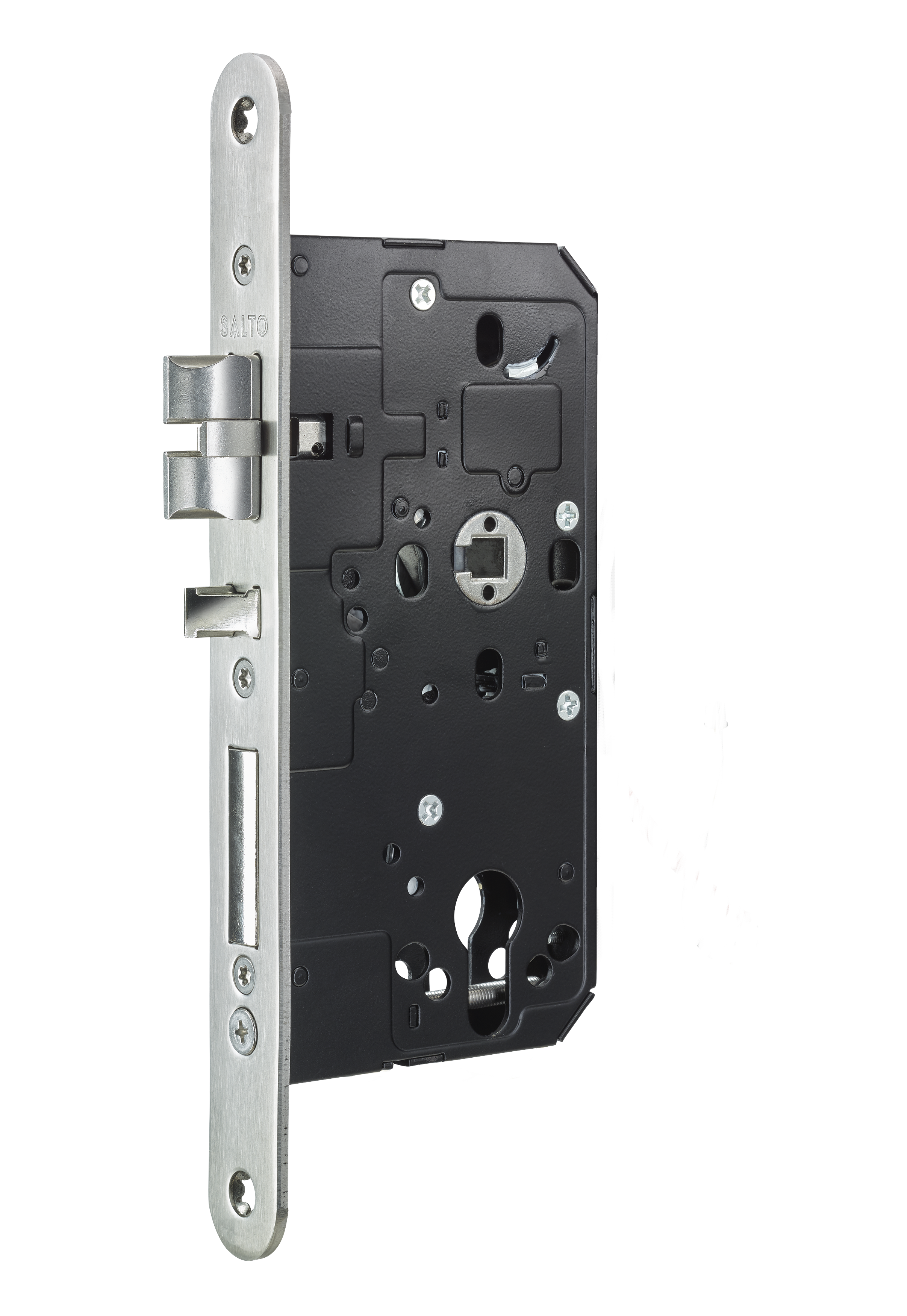

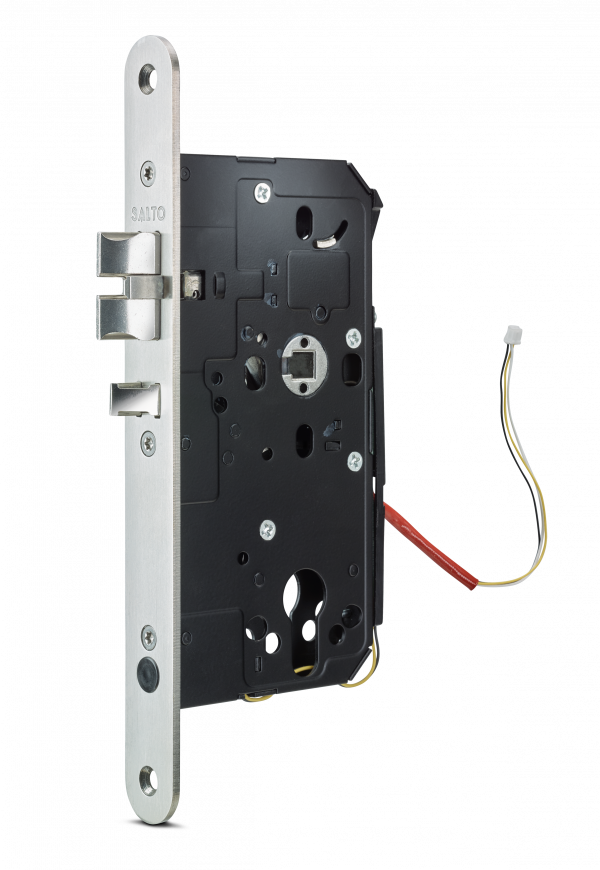

XS4 LE7S DIN compatible mortise lock

The SALTO XS4 LE7S is a DIN compatible mortise lock that offers a wide range of operations and functions possibilities to improve access control with a reliable locking solution. It includes integrated electronic detectors* to monitor in real-time the door status, providing an easy to install solution without any additional hardware or drilling needs.

Scroll down for more information ▼

MAIN FEATURES

  • DIN compatible mortise lock case, according to DIN 18251.
  • Suitable for XS4 Euro standard escutcheons and electronic cylinders.
  • High resistance by use of high quality materials.
  • Lock case, latch made of steel.
  • Equipped with auxiliary latch (anti card system) to prevent unwanted intrusions.
  • Different backsets.
  • Optional asymetric front plate for rebated doors.
  • Includes standard strike plate and dust box for an optimal installation.
  • Requires no extra drilling

OPERATIONS AND FUNCTIONS

  • Intelligent integrated detectors for deadbolt and door position to monitor the status of the door without any additional hardware or fitting.*
  • Detection of intrusion alarms. *
  • Opened and closed status of doors through SALTO Wireless technology.*
  • Optional integrated electronic privacy detector for door/room status real-time monitoring.*
  • Anti-panic safety function: In locked position, turning the inside handle retracts auxiliary latch and deadbolt simultaneously.
  • Mortise lock available with or without deadbolt for additional security.
  • The handle retracts the latch to normal position.
  • 1 turn thumbturn full projection.

TECHNICAL FEATURES

  • Axe distance: 72mm.
  • Compatible with Euro profile mechanical cylinders.
  • Round or squared front plate available.
  • 8mm or 9mm square spindle.
  • Turning angle: 23º
  • Backsets available: 55mm, 60mm, 65mm and 70mm.
  • Front plates available: 20mm and 24mm.

* Depending on the model
